How to use a Drive Rotation Strategy in Zmanda Pro

Like tape rotation, drive rotation is an effective and proven way to create secure offsite copies of your data. Zmanda Pro can easily be used to implement a drive rotation strategy.

Prerequisites

For a successful drive rotation implementation, you must have a storage target with enough space for your dataset (keeping retention policies in mind) and an adequate interface per your speed and reliability requirements.

You must also have an active Zmanda Pro contract and a device with the corresponding interface for your storage target (e.x. if backing up a VM, use USB passthrough).

We will also assume that you have already created a user for the device you will back up, installed the agent on the device, and logged in.

How to implement a drive rotation strategy

Decide on your exact strategy

You will first need to determine how many storage devices you will rotate, how often you will rotate them, and your retention policy.

As an example in this article, we will rotate drives every week, use 4 drives (one for each week of a month), and retain data for 4 weeks. This will allow us to maintain 4 versions of the full dataset, 3 of which can be kept offsite and offline.

Set up your storage vaults

After determining your overall strategy, you can begin to implement it by creating individual storage vaults within the Zmanda Pro web console.

Go to the backup user profile > Storage Vaults. Then, for each drive, click Add new vault > Custom > fill out the details for your storage vault. Note that you will be using the Local Path storage vault type. When you’re done, you should see something like this:

Create a protected item

You can use this strategy with any protected item type. Configure the protected item as you would normally (See instructions here). Special instructions for the scheduling page are in the next section.

Configure your schedules

1. In the schedule page, click the  button

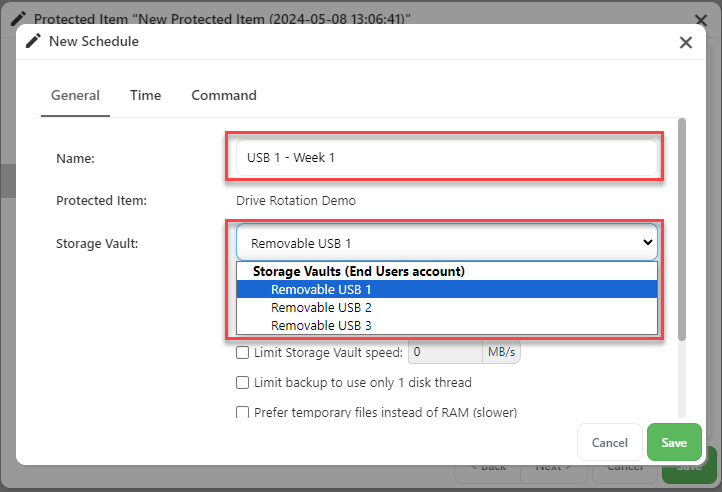

2. In the pop-up window, give the schedule a descriptive name, and select the corresponding storage vault
3. Click on the Time tab, then click the button
4. For our example, we need a series of 7 monthly schedules stacked on top of each other (one for each of the first 7 days). It should appear as follows
5. Deselect “If the last job was Missed” as shown above. Save the schedule.
6. Repeat steps 2-5 for each of the remaining drives and weeks of the month. Make sure to select the correct days of the month when configuring step 4. When you’re done, you should have something like this:
7. Click Save. Your backups will begin to run on the set schedule

Remember to rotate the drives!

Ensure that you rotate your drives according to the schedule you have set. You will see errors if the expected storage device is not present, even if the storage device from the previous week is still attached.

If this happens, simply switch in the drive that is expected for that given time frame and run a backup manually. Subsequent scheduled backups will continue to run at the originally configured times.

Questions?

For help implementing a drive rotation strategy or any questions about the strategy, contact our support team: [email protected]
